MFP-102TA
MECO

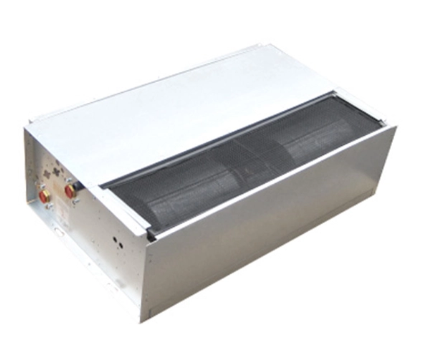

The MFP-102TA is a concealed-type fan coil unit designed for ceiling and floor installation within the MECO universal fan coil product line. Developed based on field application feedback and iterative engineering updates, this unit supports both upward and forward airflow configurations to accommodate different room layouts and duct designs. With a body thickness of 246 mm, the unit fits within limited ceiling plenum spaces or under-window installations while maintaining a concealed visual profile.
This model serves commercial procurement projects where interior aesthetics and space utilization are primary considerations. It supports installation beneath windows, within wall cavities, or recessed behind decorative panels, allowing integration with various interior design schemes. The MFP-102TA belongs to a product series with an air volume range spanning 340 m³/h to 2380 m³/h across all available models, providing sizing options for rooms of different floor areas.
Parameter | Value |
|---|---|
Model | MFP-102TA |
Brand | MECO |
Unit thickness | 246 mm |
Available static pressure options | 12 Pa / 30 Pa |
Airflow configurations | Upward airflow / Forward airflow |
Water pipe connection | Reversible left or right |
Series air volume range (all models) | 340 m³/h - 2380 m³/h |
The MFP-102TA measures 246 mm in body thickness, which allows installation in shallow ceiling cavities or under-sill locations where vertical clearance is limited. The concealed design places the entire unit behind finished surfaces, with only supply and return grilles visible after installation.
This model is manufactured in two discharge configurations: upward airflow for ceiling-ducted distribution and forward airflow for under-window or perimeter applications. Buyers may select the configuration that matches their duct layout during the procurement stage, rather than modifying units on site.
The unit is available with either 12 Pa or 30 Pa external static pressure. The 12 Pa version suits direct-discharge applications with minimal ductwork, while the 30 Pa version supports short duct runs and multiple outlet branches. Both options share the same chassis dimensions for consistent installation planning.
The hydraulic connections can be configured for either left-side or right-side piping access. This reversibility reduces installation constraints when coordinating with existing building pipe risers and allows uniform unit stocking across projects with different room layouts.
Internal components are arranged for disassembly from the front side of the unit, enabling filter replacement and routine maintenance without removing the entire chassis from the ceiling. This design reduces the labor time required for scheduled servicing over the equipment lifecycle.
The MFP-102TA concealed fan coil unit is specified across multiple commercial and institutional building types. Conference rooms, hotel guest corridors, office perimeters, and healthcare waiting areas commonly deploy this model when a visible indoor unit would conflict with interior design requirements.
For retail spaces and lobbies where ceiling aesthetics carry weight, the recessed installation method preserves the visual continuity of the ceiling plane. Sports facilities and multipurpose halls also use units from this series, selecting higher-air-volume models from the 340 m³/h to 2380 m³/h range to match occupancy loads.
The unit supports three mounting approaches: under-window sill installation, in-wall recessed installation, and ceiling recessed installation with decorative panel finishing. Mounting brackets and drain pan orientation are adjusted accordingly during installation. Drain piping must maintain the required slope for condensate removal, as with all hydronic fan coil units.
Standard maintenance includes periodic filter inspection and cleaning, drain pan flushing, and coil surface checks. Because the front panel and internal components are reachable without full unit removal, maintenance teams can perform scheduled tasks with shorter on-site time. Replacement filters and wear parts correspond to the universal MECO fan coil platform, simplifying spare parts inventory for facility management teams.
The 12 Pa configuration is intended for installations where the unit discharges directly into the space or through a very short duct. The 30 Pa configuration is selected when additional ductwork, diffusers, or filtration components create resistance to airflow. Specifying the correct static pressure ensures the unit delivers its rated air volume at the terminals.
No. Upward and forward airflow are factory-configured versions with different discharge openings and internal geometry. The direction cannot be modified in the field. Buyers should confirm the required configuration at the time of order placement.
This unit includes a standard drain pan for condensate collection. For applications with consistently high humidity loads, facility engineers should verify condensate capacity against calculated latent loads and consider insulated drain pan options if available. All hydronic fan coil units require properly sloped and trapped drain lines.
Lead time varies with order quantity and selected configuration options. Standard-configured units are typically available within standard production cycles. Buyers coordinating scheduled construction projects are advised to confirm delivery timelines during the quotation stage.
