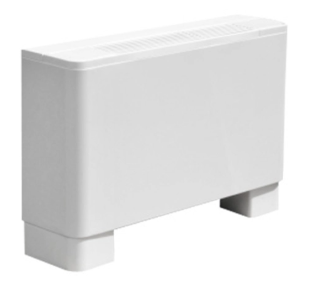

The Universal Decorative Type Fan Coil Unit serves as a terminal HVAC device for cooling and heating in indoor environments. It supports six installation configurations, including side return air, side return air with legs, bottom return air, bottom return air with legs, side return air concealed, and bottom return air concealed. The unit can be floor-mounted or ceiling-suspended, and installation does not require concealment within ceiling cavities or wall spaces. This range covers air volumes from 340-2380 m³/h across integrated models, making it suitable for various room sizes and project requirements in commercial buildings.
The L-style drain pan enables installation at horizontal, vertical, or any angle between 0-90 degrees. This design allows project planners to adapt the unit to different spatial constraints without ordering custom variants.
Six airflow styles are available for selection, covering side return and bottom return modes, each with optional leg support or concealed versions. This variety supports both exposed decorative installations and semi-concealed setups.
Left and right water pipe connection sides are interchangeable. Installers can select the pipe entry direction on site according to existing piping layouts, reducing installation time and modification work.
The unit supports a built-in thermostat option, allowing integrated temperature control without additional wall-mounted controllers. This configuration presents a cleaner appearance and simplifies user operation.
The outer casing can be removed without specialized tools, and the fan motor assembly is accessible for maintenance. This design reduces service time and lowers long-term operational costs for facility management teams.
The PVC drain pan features two water outlets and a hollow structure that enhances thermal insulation performance. The construction helps prevent condensation and water leakage during continuous operation.
Parameter | Specification |
|---|---|
Air volume range | 340-2380 m³/h |
Installation angles | 0-90 degrees (horizontal to vertical) |
Return air styles | 6 configurations |
Drain pan material | PVC with hollow insulation structure |
Drain outlets | 2 outlets |
Pipe connection | Left or right side, selectable |
Thermostat | Built-in option available |
Mounting types | Floor standing (with legs) or ceiling suspended |
This fan coil unit fits commercial and light industrial spaces where exposed HVAC equipment must match interior aesthetics. Typical installations include hotel lobbies and guest corridors, office reception areas, retail showrooms, school classrooms, and healthcare waiting areas. The decorative exterior eliminates the need for additional ceiling or wall modifications, which reduces project costs in renovation work where ceiling access is limited.
The universal design addresses a common challenge in commercial procurement: variable site conditions across multiple project locations. With interchangeable return air directions, reversible pipe connections, and angle-adjustable mounting, contractors can standardize equipment orders while adapting each unit to on-site conditions. This standardization simplifies inventory management for property developers and MEP contractors handling multiple units across a single project.
The integrated model series covers air volumes from 340-2380 m³/h, allowing selection based on room area and load requirements.
Yes. The L-shaped drain pan supports installation at any angle between 0 and 90 degrees, including fully horizontal and fully vertical positions.
Six configurations are offered: side return air, side return air with legs, bottom return air, bottom return air with legs, side return air concealed, and bottom return air concealed.
Yes. Left and right pipe connections are interchangeable during installation, allowing on-site adjustment to match existing piping layouts.
The PVC drain pan uses a hollow insulation structure with two water outlets, designed to prevent condensation and reduce leakage risk during operation.
